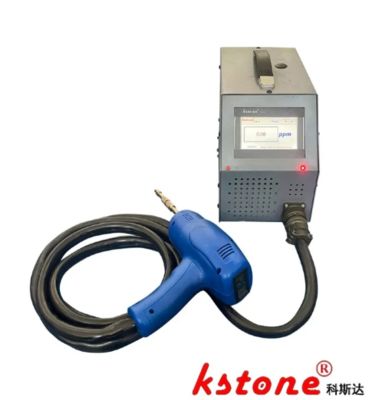

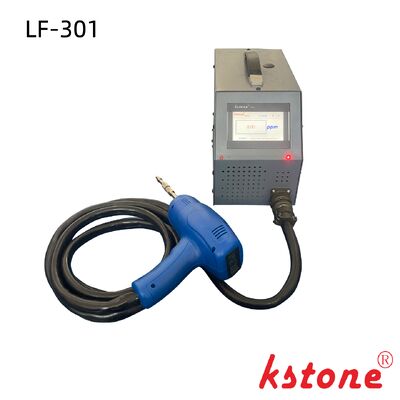

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]
![SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]](/photo/ps208682727-sf6_leakage_detector_0_01ppm_quantification_0_5s_response_external_lithium_battery_support_low_maintenance_cost_lf_301.jpg)
![SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]](/photo/pd208682727-sf6_leakage_detector_0_01ppm_quantification_0_5s_response_external_lithium_battery_support_low_maintenance_cost_lf_301.jpg)
| مكان المنشأ | شنغهاي |
|---|---|
| اسم العلامة التجارية | KSTONE |
| إصدار الشهادات | ISO9000 |
| رقم الموديل | لف-301 |
| الحد الأدنى لكمية | 1 |
| الأسعار | $25000-$26000 |
| تفاصيل التغليف | علبة / صندوق خشبي |
| وقت التسليم | 30 يوم عمل |
| شروط الدفع | ر/ر |
| القدرة على العرض | 1000 في السنة |
Contact me for free samples and coupons.
واتس اب:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xتفاصيل المنتج
| نطاق القياس | 0.01ppm - 10000ppm | دقة | 0.01PPM |
|---|---|---|---|
| دقيقة. دقة | 0.01PPM | خرطوم الغاز والكهرباء المتكاملة للكاشف | يبلغ الطول القياسي 3 أمتار (يمكن تخصيصه كما هو مطلوب ، حتى 10 أمتار) |
| كابل إدخال الطاقة | 2 متر | طاقة الإدخال | 220V ± 22V 50Hz ± 2Hz (يتوفر إمدادات طاقة عاكس بطارية الليثيوم الخارجي) |
| إبراز | 0.01ppm SF6 Leakage Detector,0.5s SF6 Leakage Detector,0.5s SF6 Leakage Detector |
||
منتوج وصف
SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]
Overview
It adopts the principle of low-voltage ionization in a high-frequency magnetic field. The product has no radiation source, which is safe and reliable. There are no vulnerable parts in the product, and the usage and maintenance cost is low. It is durable. An external lithium battery inverter power supply is required when needed.
Accurately quantify 0.01ppm.
Technical Parameters:
|
Measurement Range |
0.01ppm - 10000ppm(v) |
|
Measurement Accuracy |
0.01ppm(v) |
|
Minimum Resolution |
0.01ppm(v) |
|
Recovery Time from "Poisoning" |
≤10 seconds in an environment of 99.99% SF6 |
|
Response Time |
≤0.5 seconds for 10ppm |
|
Indication Method |
Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm |
|
Gas and Electric Integrated Hose of the Detector |
Standard length is 3 meters (Can be customized as required, up to 10 meters) |
|
Power Input Cable |
2 meters |
|
Input Power |
220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available) |
|
Ambient Temperature |
5℃ - 45℃ |
|
Ambient Humidity |
≤85% |
|
Power |
≤100W |
|
Net Weight of the Whole Machine |
Detector: 1.2Kg |
|
External Dimensions of the Main Unit |
310×168×200mm |
|
Outer Packaging |
Aluminum alloy anti-collision box |
|
Gross Weight |
12Kg |
|
External Dimensions of the Aluminum Alloy Box |
370*320*270mm |
