تفاصيل المنتج:
شروط الدفع والشحن:
|

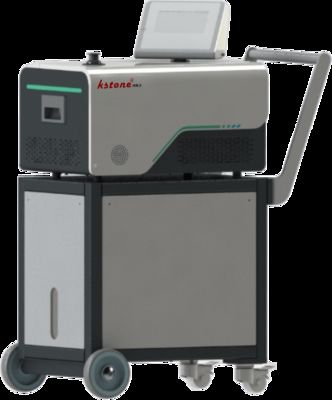

| إبراز: | Helium Hydrogen Mass Spectrometer Leak Detector,High Sensitivity Mass Spectrometer Leak Detector,Automatic Mobile Leak Detector,High Sensitivity Mass Spectrometer Leak Detector,Automatic Mobile Leak Detector |
||
|---|---|---|---|
| Minimum detectable leak rate (Vacuum mode) | 3×10⁻¹³ Pa·m³/s |
| Leak rate display range (Vacuum mode) | 1×10⁻² Pa·m³/s ～ 1×10⁻¹³ Pa·m³/s |
| Startup time | ≤ 120 S |
| Response time | ＜ 0.3 S |
| Maximum pressure at leak detection port | 2000 Pa |
| Rough detection vacuum degree at leak detection port | 2000 ～ 200 Pa |
| Medium detection vacuum degree at leak detection port | 200 ～ 40 Pa |
| Fine detection vacuum degree at leak detection port | Below 40 Pa |
| Helium pumping speed of the leak detector | 5 L/s |
| Display units | Pa·m³/s, mbar·l/s, atm·cc/s |
| Display interfaces | Curve graph, histogram, numerical display |
| Leak detector dimensions | 870×523×1166 (unit not specified, generally mm) |
| Control mode | One-key fully automatic control; automatic zero adjustment; automatic calibration; automatic/manual switching of double filaments |
| Display mode | LCD touch screen display (rotatable by 270°); configurable with 4 groups of alarm values |
| Core components and technology | German imported turbo high-vacuum molecular pump; German BURKERT solenoid valve; imported AD chip; mechanical pump (Baosi); new mass spectrometry technology with 180° ionization deflection; equipped with standard leak hole and calibration certificate |
اتصل شخص: Ms. Jin
الهاتف :: 15000093078
