Emission-Free SF6 Comprehensive Tester with Modular Testing System for High-Precision Gas Analysis
| مكان المنشأ | شنغهاي |
|---|---|
| اسم العلامة التجارية | KSTONE |
| إصدار الشهادات | ISO9000 |
| رقم الموديل | KS30-R-6 |
| الحد الأدنى لكمية | 1 |
| الأسعار | $22000-25000 |
| تفاصيل التغليف | كرتون / صندوق خشبي |
| وقت التسليم | 15 يوم عمل |
| شروط الدفع | تي/تي |
| القدرة على العرض | 1000 وحدة في السنة |
تفاصيل المنتج
منتوج وصف
Environmentally Friendly SF6 Comprehensive Tester | Emission-Free Gas Analysis & Recycling System

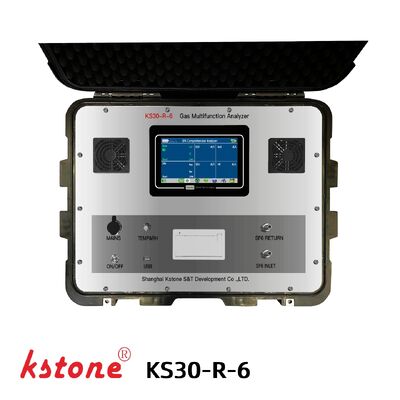

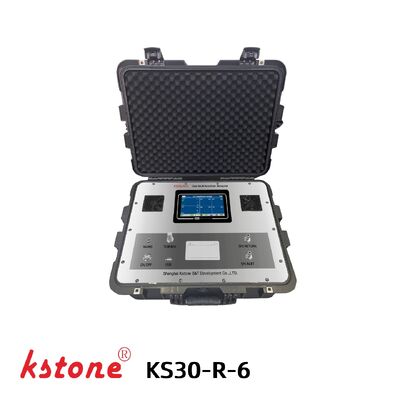

KS30-R-6 Environmentally Friendly Emission-Free SF6 Comprehensive Tester with Recycling Function
The KS30-R-6 SF6 Comprehensive Tester is an advanced emission-free gas analysis system designed for modern GIS and high-voltage electrical equipment maintenance.
It integrates SF6 decomposition products detection, gas purity analysis, and humidity (dew point) measurement in a single modular platform.
With a built-in gas recycling and recovery function, the KS30-R-6 significantly reduces SF6 emissions, helping operators meet environmental protection requirements while maintaining high-precision diagnostics in the field.
Key Features
Eco-Friendly Emission-Free Design
Built-in gas recycling system ensures zero-emission operation, reducing SF6 environmental impact.
Modular Testing System
Flexible configuration supports multiple measurement modules:
- SF6 decomposition gas analysis
- SF6 purity detection
- SF6 humidity / dew point measurement
Portable Field Operation
- 7-inch industrial touchscreen
- More than 10 hours battery operation
- Suitable for outdoor GIS maintenance
High-Precision Gas Analysis
Delivers stable and reliable detection of key SF6 condition indicators for power system safety.
Technical Specifications
SF6 Gas Decomposition Products Detection Module
| Item | Details |
|---|---|
| Measurement Range | SO₂: 0-100 µL/L, H₂S: 0-100 µL/L, CO: 0-500 µL/L, HF: 0-10 µL/L |
| Accuracy | ±10% |
| Resolution | 0.1 µL/L |
| Response Time | ≤60s |
SF6 Purity Detection Module
| Item | Details |
|---|---|
| Measurement Range | 0-100% |
| Accuracy | ≤±0.5% |
| Repeatability | ≤±0.2% |
| Resolution | 0.01% |
| Response Time | ≤60s |
SF6 Humidity (Dew Point) Detection Module
| Item | Details |
|---|---|
| Dew Point Range | -60°C ~ +20°C |
| Accuracy | ±2°C |
| Resolution | 0.1°C |
| Repeatability | ±1°C |
| Response Time | -60°C→20°C: 30-60s / 20°C→-60°C: 60-600s |
Whole Machine Technical Parameters
| Parameter | Details |
|---|---|
| Power Supply | AC100-240V / 50-60Hz |
| Charger | DC28V / 5A |
| Battery | 18650 Lithium Battery, 21.6V / 20Ah |
| Operating Time | >10 hours |
| Display | 7-inch Color Touchscreen |
| Inlet Pressure | 0.1-0.7 MPa |
| Max Recharge Pressure | 0.7 MPa |
| Dimensions | 562 × 440 × 240 mm |
| Weight | ~27 kg |
Applications
- GIS (Gas Insulated Switchgear) maintenance
- High-voltage substations
- Power transmission & distribution systems
- SF6 circuit breaker inspection
- Preventive maintenance & diagnostics
System Advantages Summary
- Emission-free SF6 handling system
- Integrated multi-parameter gas analysis
- High portability for field service engineers
- Modular upgrade design for future expansion
- Supports environmental compliance in power industry
Frequently Asked Questions
Q1: What is KS30-R-6 used for?
It is used for comprehensive SF6 gas condition analysis including decomposition products, purity, and humidity.
Q2: Does KS30-R-6 release SF6 gas during testing?
No. It uses an emission-free recycling system to prevent gas leakage.
Q3: Can the system be customized?
Yes, it supports modular configuration depending on testing requirements.
Q4: Is it suitable for field use?
Yes. It is portable with long battery life and a built-in touchscreen interface.
If you are looking for a reliable and environmentally friendly SF6 gas analysis solution, the KS30-R-6 emission-free comprehensive tester is ready to support your field applications.
Our technical team can provide:
-
Product selection guidance
-
Modular configuration customization
-
Technical specifications and datasheets
-
Global shipping and after-sales support
Please feel free to contact us for more information or a customized solution tailored to your project requirements.
Email: info@kstone-sf6.com
Sales Contact: Available upon request
We will respond to your inquiry as soon as possible.
