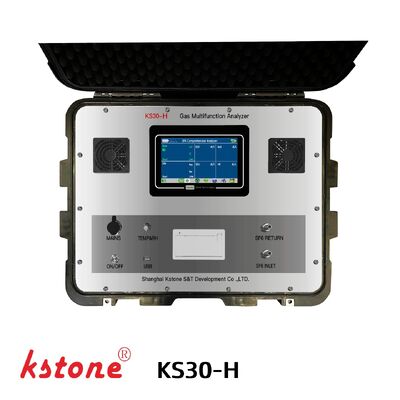

Eco-Friendly Switchgear Gas Analyzer with Infrared Spectroscopy for Trace SF6 Detection and Dew Point Measurement
| مكان المنشأ | شنغهاي |
|---|---|
| اسم العلامة التجارية | KSTONE |
| إصدار الشهادات | ISO9000 |
| رقم الموديل | KS30-H |
| الحد الأدنى لكمية | 1 |
| تفاصيل التغليف | كرتون / صندوق خشبي |
| وقت التسليم | 15 يوم عمل |
| شروط الدفع | تي/تي |
| القدرة على العرض | 1000 وحدة في السنة |
تفاصيل المنتج
| مبدأ القياس SF6 | التحليل الطيفي بالأشعة تحت الحمراء | نطاق SF6 | 0-100 جزء في المليون |
|---|---|---|---|
| دقة SF6 | ±2% FS | قرار SF6 | 0.1 جزء في المليون |
| دقة N2 | ±0.5% | دقة O2 | ±0.5% |
| نطاق نقطة الندى (اختياري) | -80 درجة مئوية إلى +20 درجة مئوية | دقة نقطة الندى | ± 0.5 درجة مئوية |
منتوج وصف
Eco-Friendly Switchgear Gas Analyzer | SF6 Trace Gas, O2, N2 & Dew Point Tester
KS30-H Eco-Friendly Switchgear Gas Analyzer
Accurate Trace SF6, O2, N2 and Dew Point Measurement for Environmentally Friendly Switchgear
As power utilities increasingly adopt environmentally friendly switchgear technologies, reliable gas composition analysis becomes essential for equipment identification, commissioning, maintenance and quality control.
The KS30-H Eco-Friendly Switchgear Gas Analyzer is specifically developed for dry air insulated switchgear and nitrogen insulated switchgear applications. It accurately detects trace SF6 concentration, measures O2 and N2 content, and optionally performs dew point testing. The analyzer helps maintenance personnel quickly identify insulation gas types, verify gas quality and ensure safe operation of eco-friendly power equipment.
Key Features
Trace SF6 Detection
- Infrared spectroscopy technology
- Detection range from 0 to 100 ppm
- Resolution of 0.1 ppm
- Fast response time within 30 seconds
Gas Composition Analysis
- Simultaneous measurement of O2 and N2 concentration
- Supports environmental switchgear gas identification
- Suitable for mixed-gas and alternative insulation systems
Optional Dew Point Measurement
- Dew point range from -80°C to +20°C
- Moisture assessment for insulation gas quality control
- Helps prevent insulation degradation caused by excessive moisture
Portable Design
- Lightweight 3.5 kg portable instrument
- Rechargeable lithium battery
- AC/DC dual power supply
- Suitable for field testing and substation maintenance
Fast and Reliable Testing
- Rapid measurement cycle
- User-friendly operation
- Stable performance in demanding environments
Applications
Eco-Friendly Switchgear Testing
Used for gas analysis in:
- Dry Air Insulated Switchgear
- Nitrogen Insulated Switchgear
- Medium Voltage Switchgear
- Ring Main Units (RMU)
- Environmentally Friendly GIS Equipment
Utility Maintenance
- Routine inspection
- Commissioning tests
- Preventive maintenance
- Gas quality verification
Manufacturing and Quality Control
- Factory acceptance testing
- Product validation
- Gas composition confirmation
Technical Specifications
| Item | Specification |
|---|---|
| SF6 Measurement Principle | Infrared Spectroscopy |
| SF6 Range | 0-100 ppm |
| SF6 Accuracy | ±2% F.S |
| SF6 Resolution | 0.1 ppm |
| SF6 Response Time | ≤30 s |
| N2 Range | 0-100% |
| N2 Accuracy | ±0.5% |
| N2 Resolution | 0.01% |
| N2 Response Time | ≤30 s |
| O2 Range | 0-30% |
| O2 Accuracy | ±0.5% |
| O2 Resolution | 0.01% |
| O2 Response Time | ≤30 s |
| Dew Point Range (Optional) | -80°C to +20°C |
| Dew Point Accuracy | ±0.5°C |
| Dew Point Resolution | 0.1°C |
| Sample Flow Rate | 0.2-0.5 L/min |
| Sample Pressure | ≤10 bar |
| Operating Temperature | -20°C to +50°C |
| Humidity | 5-95% RH |
| Power Supply | Rechargeable Lithium Battery, 100-240 VAC, 50/60 Hz |
| Dimensions | 414 × 333 × 177 mm |
| Weight | 3.5 kg |
Why Choose KS30-H?
The KS30-H is specifically designed for the growing market of environmentally friendly switchgear. Unlike conventional SF6 analyzers, it can accurately identify dry air and nitrogen insulation media while detecting trace SF6 contamination and measuring oxygen concentration.
This makes it an ideal solution for utilities, switchgear manufacturers and service providers involved in the transition toward low-carbon power systems.
Frequently Asked Questions
What types of switchgear can the KS30-H test?
The analyzer is designed for dry air insulated switchgear, nitrogen insulated switchgear, environmentally friendly GIS equipment and RMUs.
Can the analyzer detect trace SF6 contamination?
Yes. The infrared sensor can measure SF6 concentrations from 0 to 100 ppm with a resolution of 0.1 ppm.
Is dew point measurement included?
Dew point testing is available as an optional function, with a measurement range of -80°C to +20°C.
Why is O2 measurement important?
Oxygen concentration helps verify insulation gas composition and identify abnormal gas conditions in environmentally friendly switchgear.
Is the analyzer suitable for field use?
Yes. The instrument features a rechargeable lithium battery, lightweight portable design and AC/DC dual power operation, making it ideal for on-site testing.
Contact Us
Request a Quote for KS30-H Eco-Friendly Switchgear Gas Analyzer
Looking for a reliable solution for eco-friendly switchgear gas analysis?
Shanghai Kestone specializes in gas testing, leak detection, gas recovery and gas handling equipment for power utilities, switchgear manufacturers and service companies worldwide.
Whether you need trace SF6 detection, O2/N2 analysis, dew point measurement or a customized testing solution, our engineering team can provide professional support and fast quotations.
